H400 CNC lathe is our company's patented product, patent number: ZL20182077626.7.
A CNC lathe with an integral asynchronous bed head, ZL201821895511.4, and a direct drive spindle.

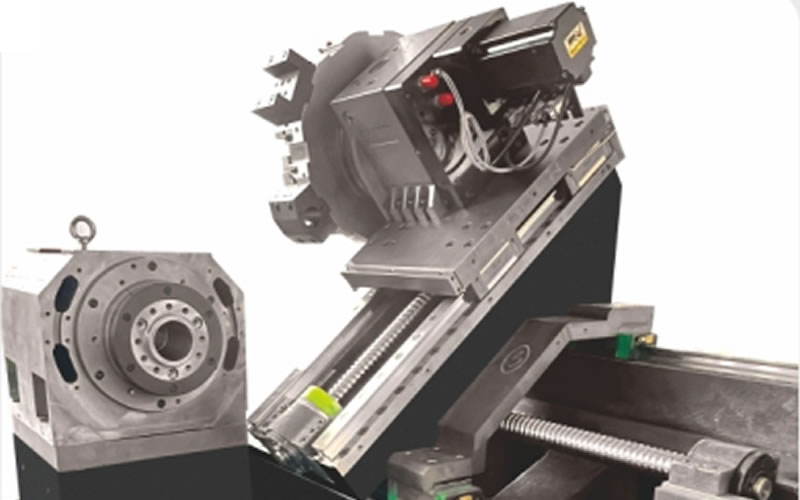

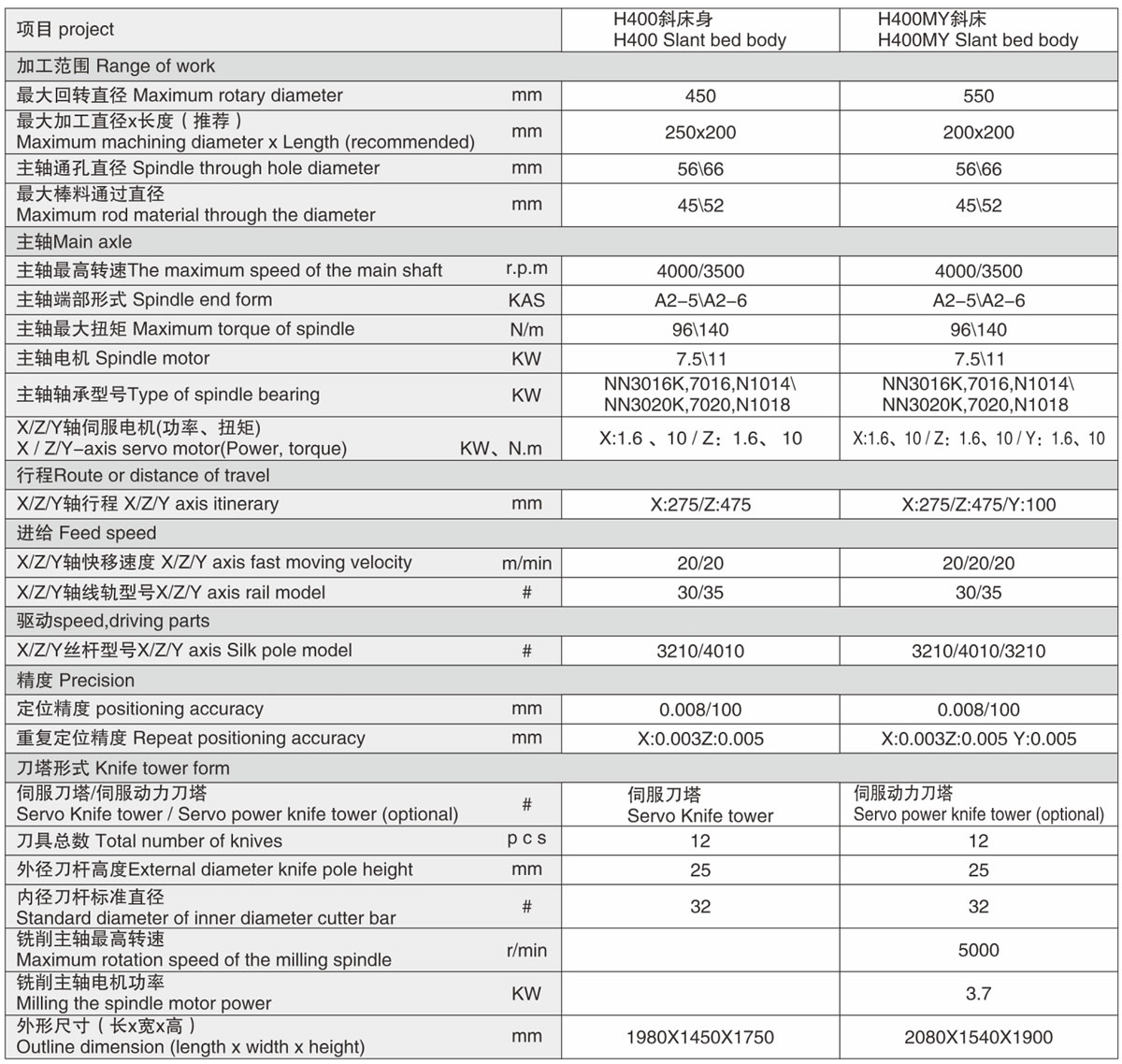

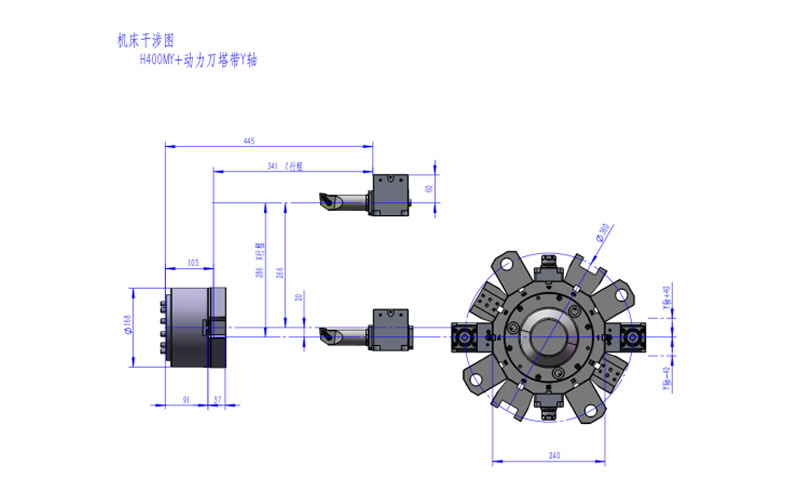

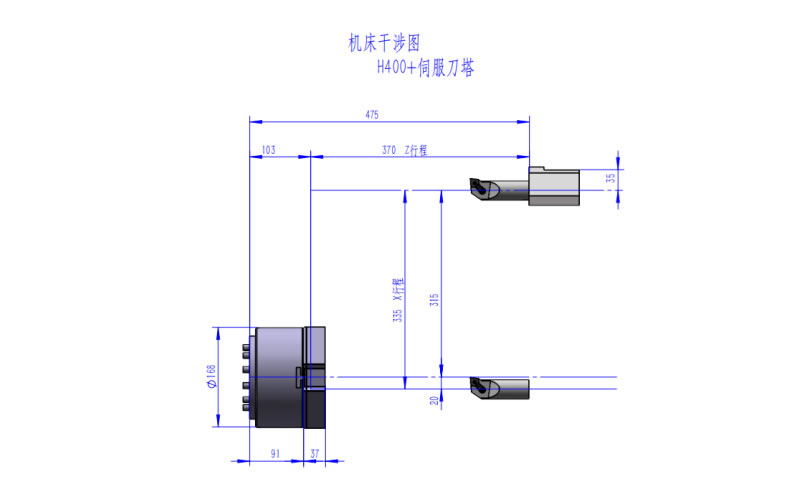

This CNC lathe adopts a semi closed-loop control CNC lathe system. The standard configuration is a three-axis control cxz, and the host adopts a 30 ° inclined drag plate with a stepped rail layout. The Z-axis drag plate has a triangular structure, and the drag plate has strong rigidity.
The spindle (C-axis) is a direct drive AC asynchronous servo spindle without a transmission mechanism, which realizes position control and speed control. The spindle can achieve rotational feed, indexing, and accuracy.
The spindle clamping is achieved by using a hydraulic rotary cylinder to drive a three jaw chuck to clamp the workpiece.
X. Z is driven by a ball screw, rolling linear guide rail; The guide rail protection adopts full protection, and the drag plate feeding adopts absolute value AC servo motor.
The machine tool has good dynamic characteristics, high flexibility, high machining accuracy, stable and reliable machining quality, and strong rigidity.
